Product Overview

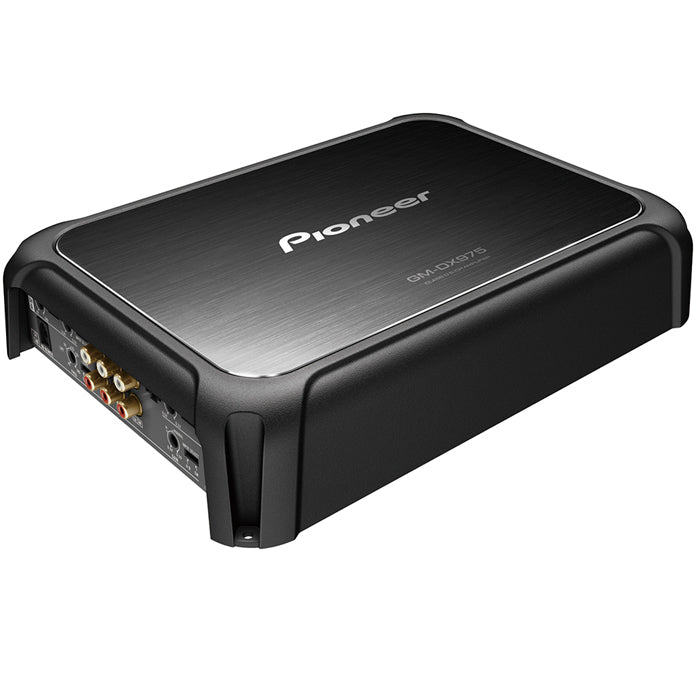

The Pioneer GM-DX975 is a compact, high-efficiency 5-channel Class D amplifier designed to power an entire car audio system from a single chassis. Built with premium internal components and Hi-Res Audio certification, this amplifier delivers clean, detailed sound while saving valuable installation space.
Power & Performance
Providing 75W x4 RMS to front and rear speakers and up to 600W RMS to a subwoofer, the GM-DX975 delivers balanced full-system performance. Rated at 2000W max power, this amplifier supports multiple system configurations, including a 3-channel mode for high-output front staging with dedicated subwoofer power.
Efficient Class D Design
Advanced Class D technology keeps the amplifier running cool and efficient while delivering strong output. Its compact chassis allows installation in tight spaces, making it ideal for compact cars, trucks, boats, and powersports applications.
System Integration & Installation

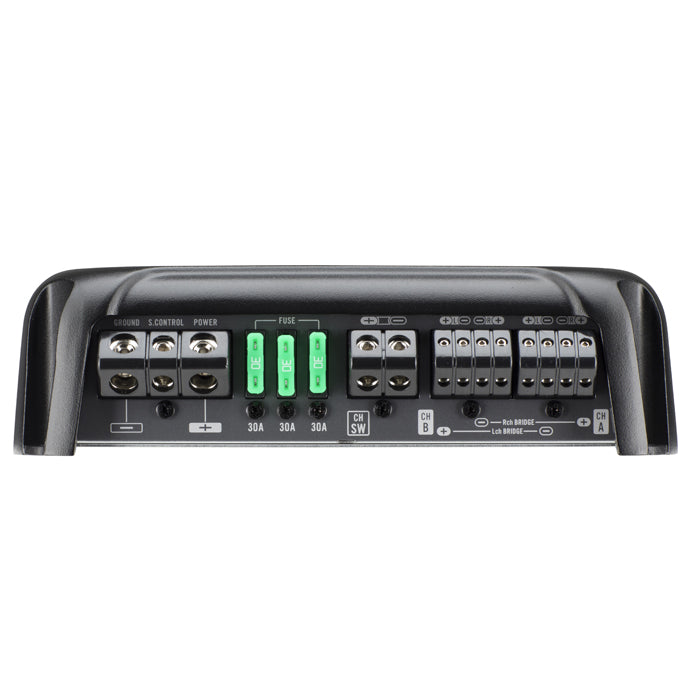

Speaker-level inputs allow easy integration with factory audio systems, automatically switching input modes without requiring a separate turn-on lead. Gold-plated RCA connections and block-style terminals ensure reliable signal transfer and clean wiring.
Sound Tuning & Control

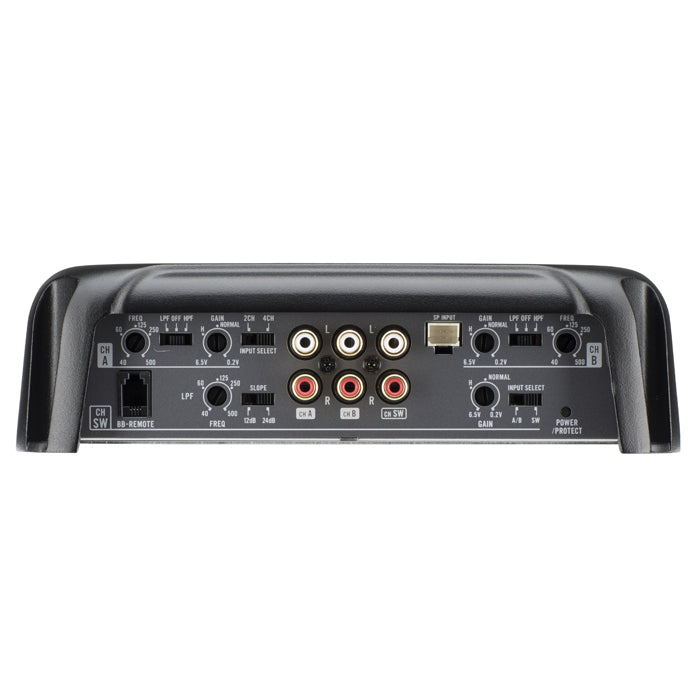

Built-in high-pass and low-pass filters allow precise tuning for your vehicle’s interior acoustics. A wired bass boost remote lets you adjust low-frequency output directly from the driver’s seat.
Key Features
5-Channel Full-System Class D Amplifier
2000W Max Power Output
75W x4 + 600W RMS Power Distribution
Hi-Res Audio Certified
Speaker-Level Input with Auto Turn-On
Remote Bass Boost Control Included
Specifications
Continuous Power Output:
75W x4 + 350W x1 @ 4Ω
100W x4 + 600W x1 @ 2Ω
200W x2 + 350W x1 @ 4Ω Bridged
Frequency Response (Full-Range): 10Hz – 50kHz
Frequency Response (Subwoofer): 10Hz – 500Hz
Crossover: HPF / LPF Adjustable
Signal-to-Noise Ratio: 75 dBA
THD: ≤1%
Input Type: RCA & Speaker-Level
Fuse Rating: 30A x3
Unit Weight: 7.3 lbs
What’s in the Box
GM-DX975 Amplifier
Bass Boost Remote & Cable
Speaker-Level to RCA Adapter
Installation Hardware
Owner’s Manual
1-Year Manufacturer Warranty
