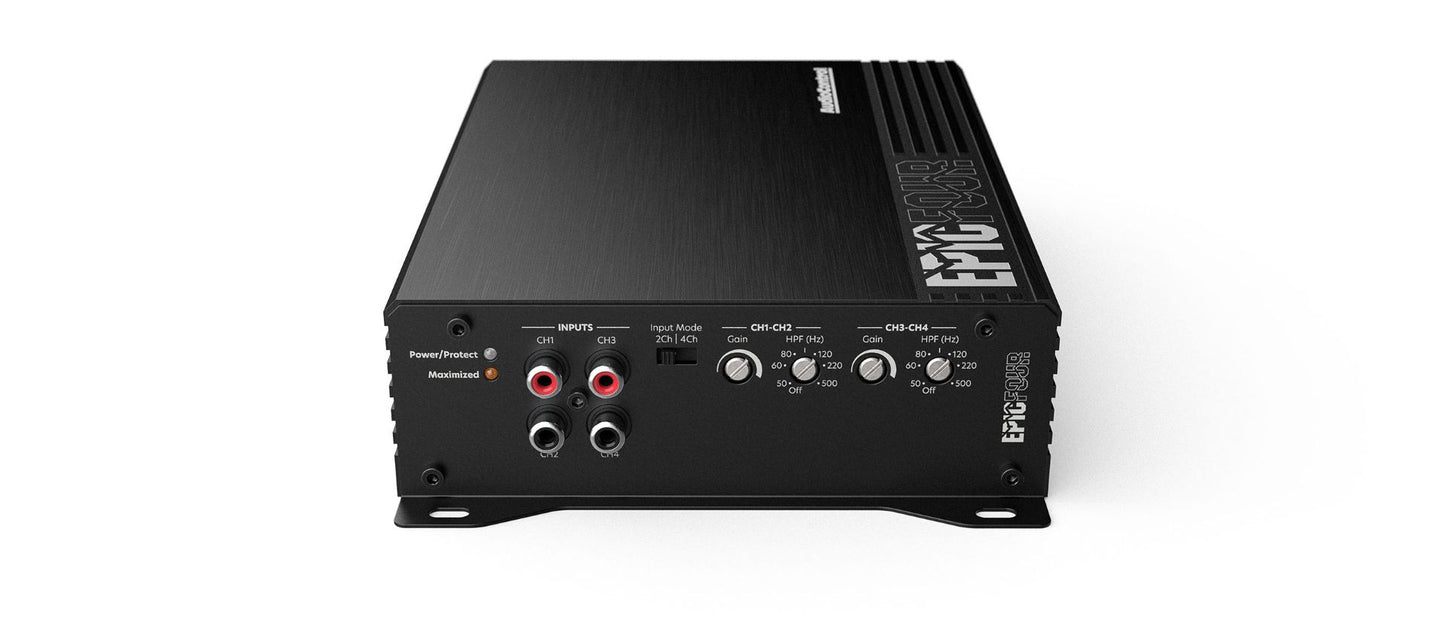

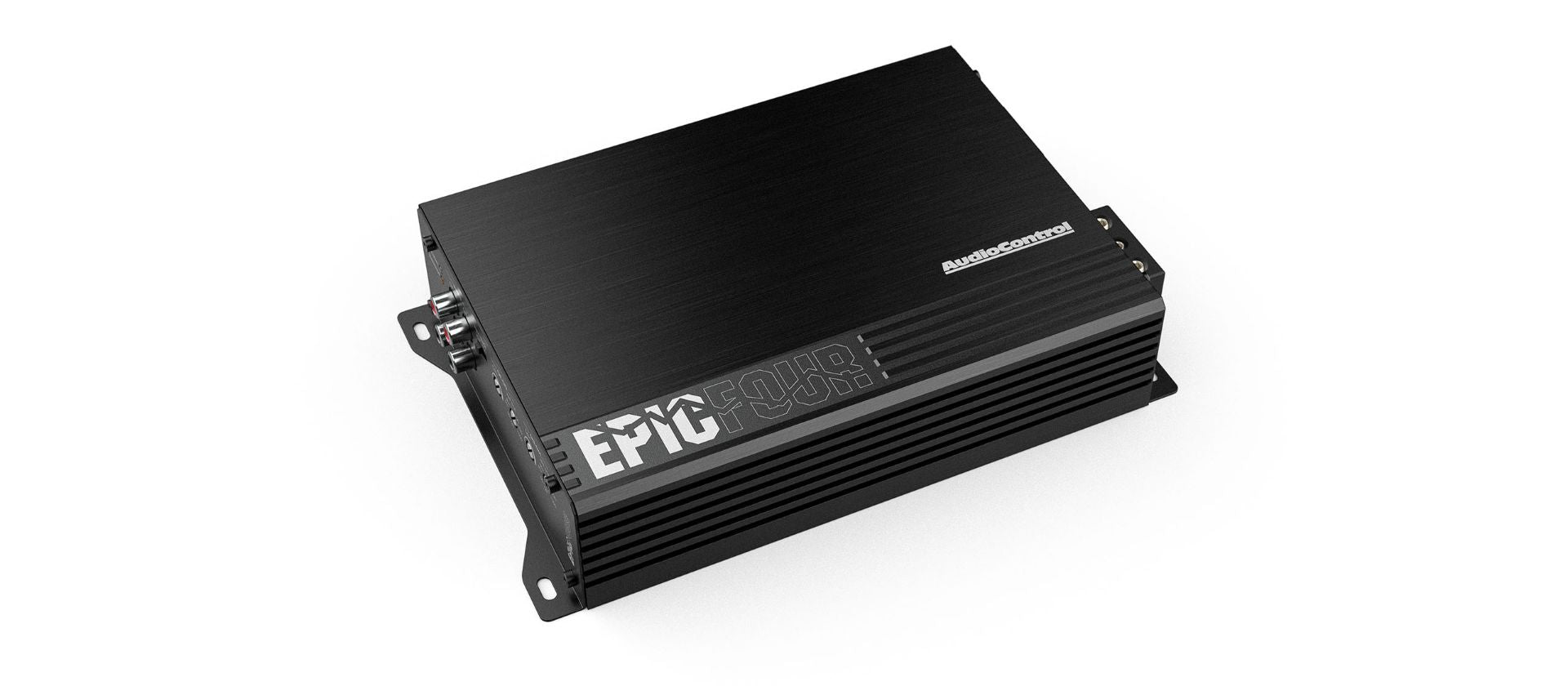

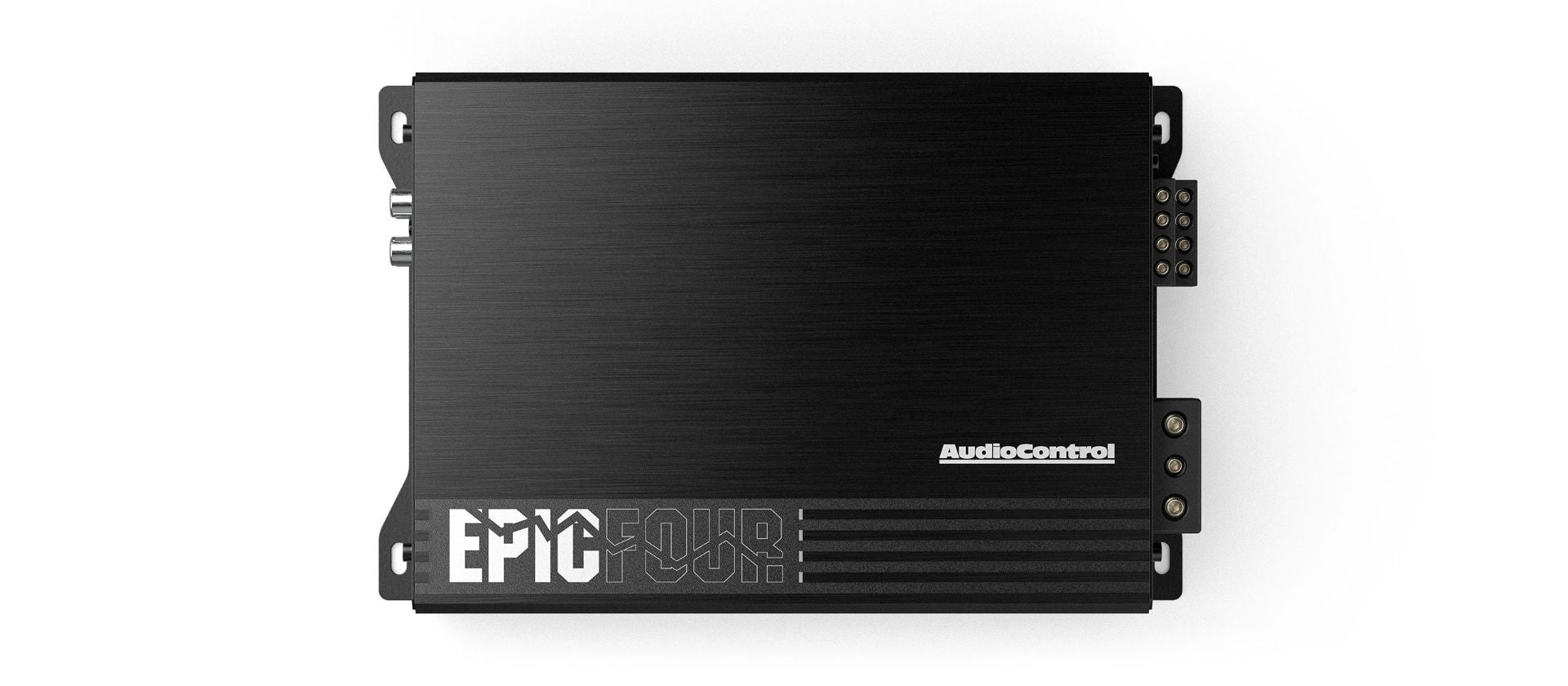

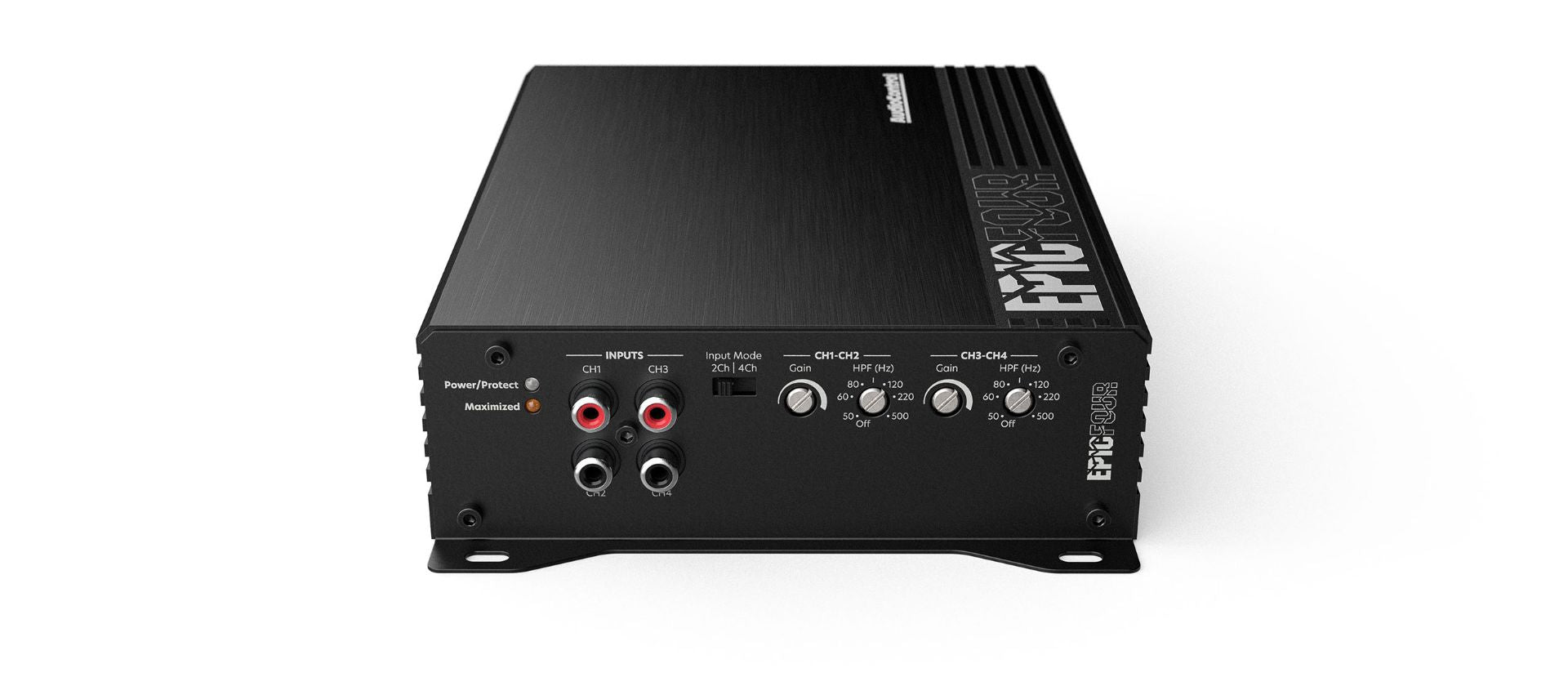

AudioControl EPIC Four Amplifier
Product Overview
The AudioControl EPIC Four is a compact, high-performance 4-channel full-range amplifier designed to deliver clean, powerful output with excellent thermal efficiency. Built on a rugged Class D platform, it provides reliable performance for space-conscious yet power-demanding audio systems.
Power & Performance
Delivering 100W x4 @ 4Ω, 200W x4 @ 2Ω, and 300W x2 @ 4Ω bridged, the EPIC Four offers flexible power options for speakers and midbass applications. Its 2Ω-stable, high-current design ensures strong output while maintaining efficiency and low heat.
High-Current Class D Design
Engineered with a digital Class D architecture, the EPIC Four balances high output and compact size. Ultra-efficient operation minimizes idle current draw while maintaining consistent performance under load.
Protection & Reliability
A smart auto-reset protection circuit actively monitors operating conditions to safeguard the amplifier from electrical or thermal issues, ensuring long-term durability in demanding installs.
System Integration & Connectivity

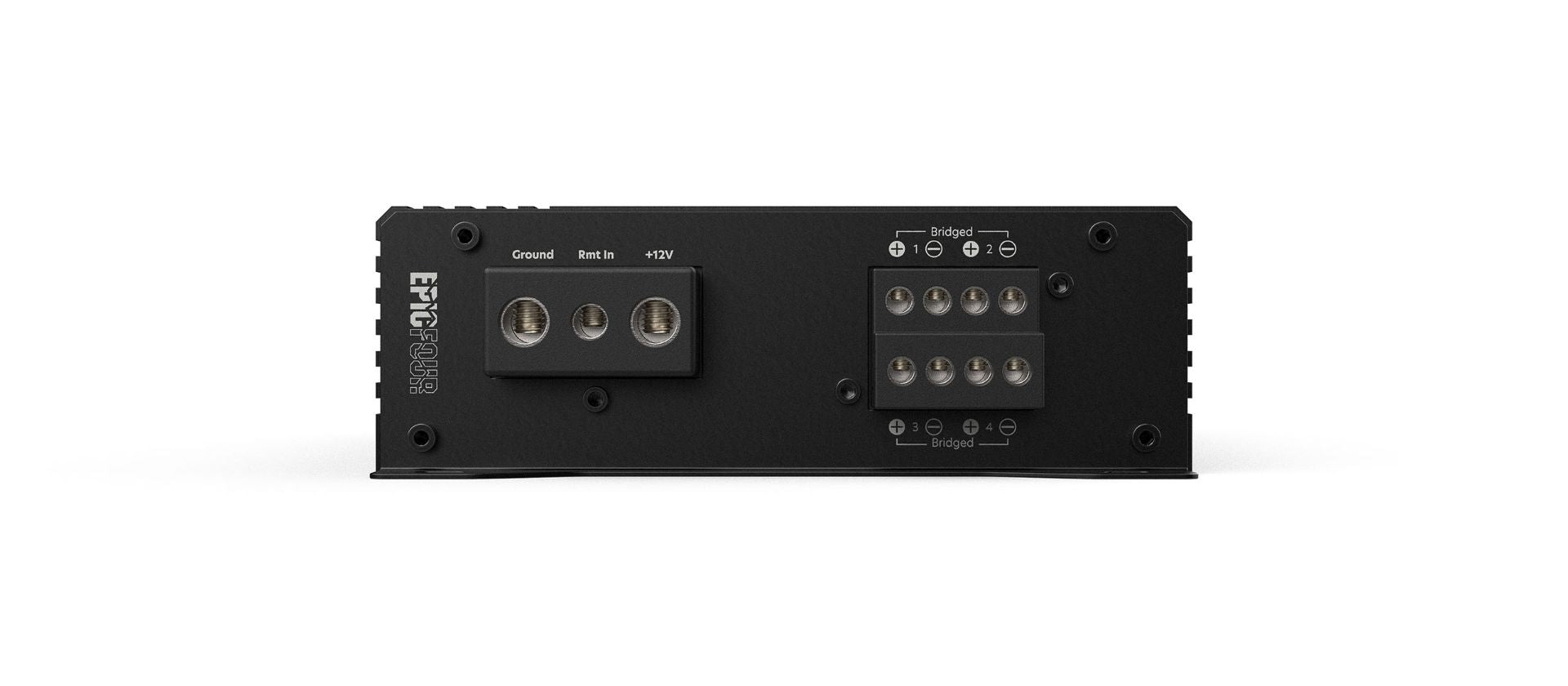

Heavy-duty direct-wire power and speaker terminals secured with hex screws provide solid, vibration-resistant connections. Variable Linkwitz-Riley high-pass filters allow precise system tuning.
Key Features
Compact High-Power Class D Design
High-Current Architecture – 2Ω Stable
Smart Auto-Reset Protection Circuit
Linkwitz-Riley Variable High-Pass Filters
Solid Power & Speaker Terminals with Hex Screws
Protection Systems
Output Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Input Under-Voltage Protection (UVP)
Output DC Offset Protection (DCP)
Over-Temperature Protection (OTP)
Specifications
Power Output: 100W x4 @ 4Ω / 200W x4 @ 2Ω / 300W x2 @ 4Ω Bridged
Signal-to-Noise Ratio: 91 dB+ (CEA Standard)
Idle Current Draw: <0.5–1A
Power Terminal: 4 AWG
Speaker Terminal: 8 AWG
Crossover: 12 dB/Oct Linkwitz-Riley High-Pass
Important Notice
Online sales of this product must be approved by AudioControl.
