Product Overview

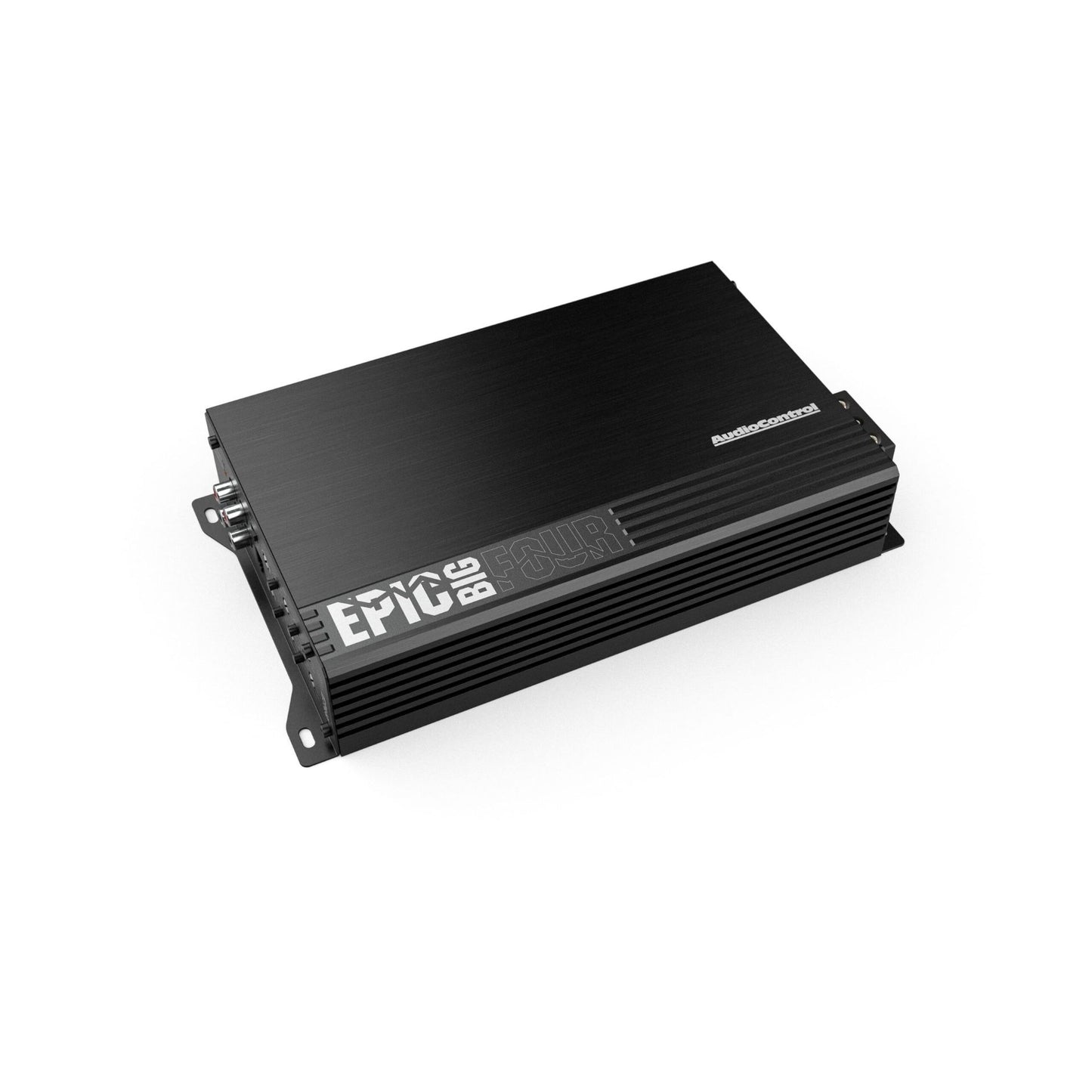

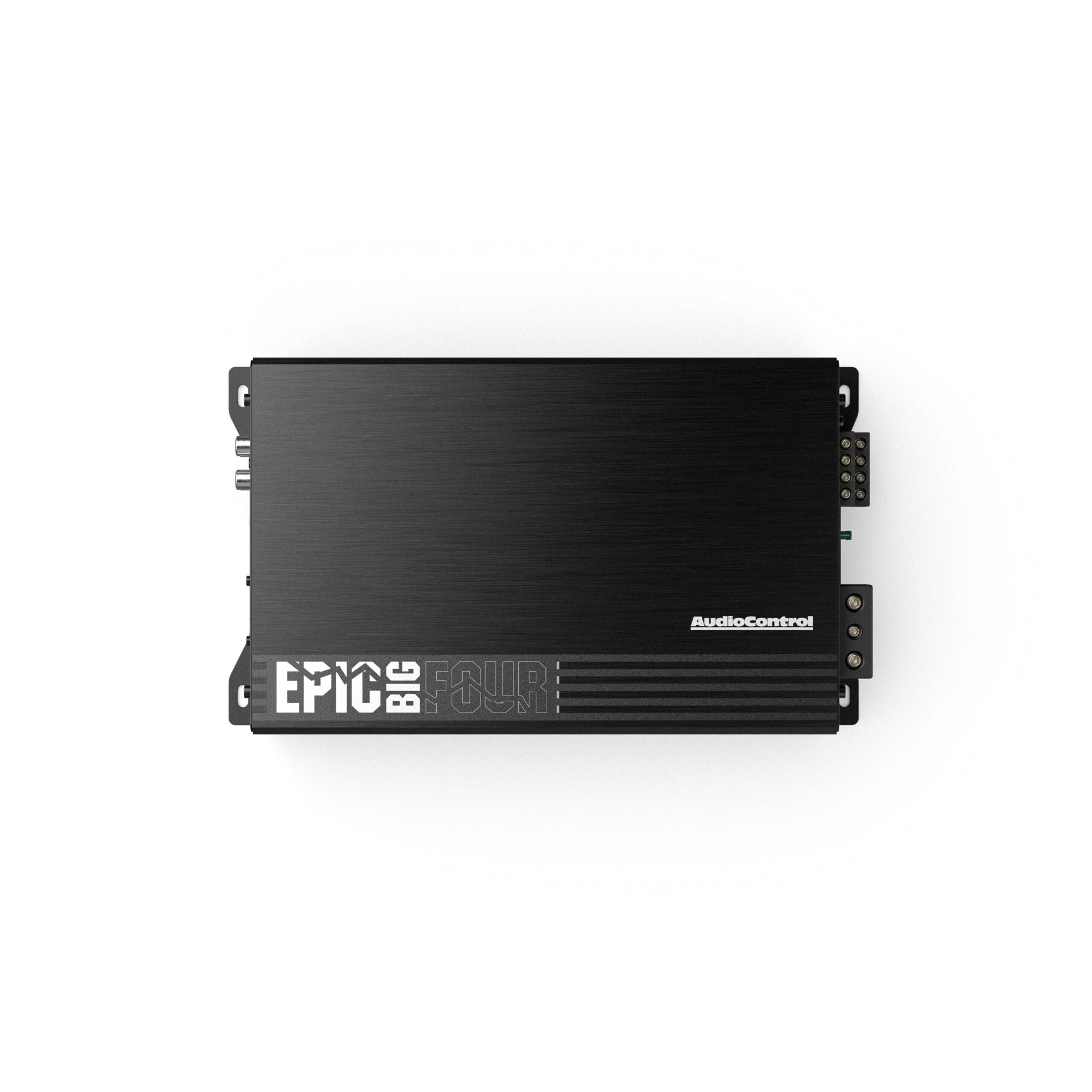

The AudioControl EPIC Big Four is a high-output 4-channel full-range amplifier engineered for extreme power, efficiency, and reliability. Built on a compact Class D platform, it delivers massive RMS output while maintaining excellent thermal control in space-constrained installs.
Power & Performance
Producing 200W x4 @ 4Ω, 350W x4 @ 2Ω, and up to 800W x2 @ 4Ω bridged, the EPIC Big Four is designed for systems that demand serious volume without sacrificing clarity. With a total output capability of 1,400W RMS, this amplifier is ideal for high-performance speaker and midbass applications.
High-Current Class D Design
The EPIC Series uses a high-current, 2Ω-stable Class D architecture to deliver maximum efficiency and sustained power. Ultra-low idle current draw ensures reliable performance without unnecessary battery strain.
Protection & Reliability
A smart auto-reset protection system continuously monitors amplifier operation to prevent damage under extreme conditions. Multiple built-in safeguards ensure long-term durability and stable performance.
System Integration & Connectivity

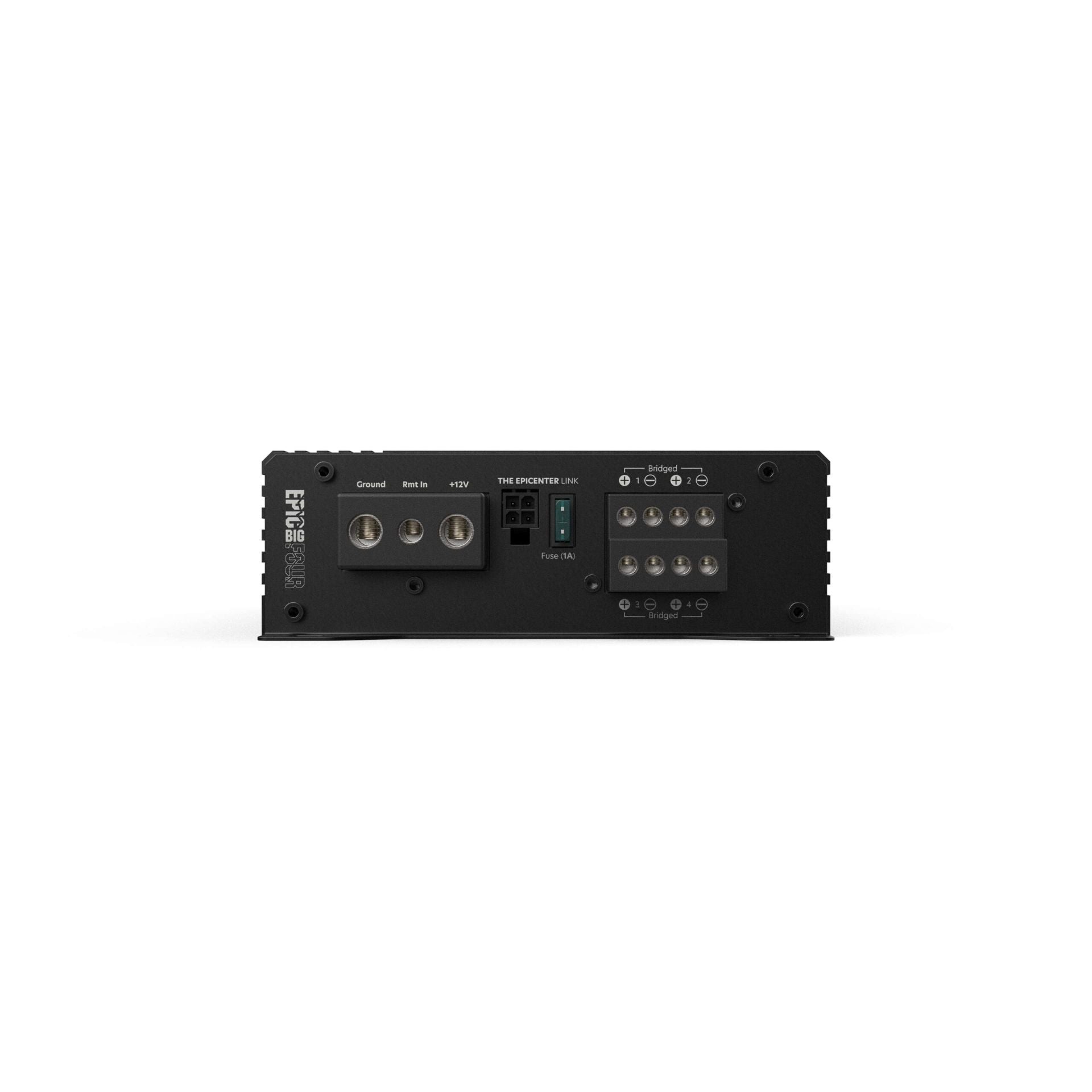

Featuring heavy-duty direct-wire terminals secured by hex screws, oversized power connections, and Epicenter Link compatibility, the EPIC Big Four integrates seamlessly into advanced AudioControl sound systems.
Key Features
2Ω Stable Digital Class D Design
Direct-Wire Terminals with Hex Screws
Epicenter Link Compatibility
Ultra-Low Idle Current Draw
Smart Auto Reset Protection Circuit
Protection Systems
Output Over-Current Protection (OCP)
Input Over-Voltage Protection (OVP)
Input Under-Voltage Protection (UVP)
Output DC Offset Protection (DCP)
Over-Temperature Protection (OTP)
Specifications
Power Output: 200W x4 @ 4Ω / 350W x4 @ 2Ω / 800W x2 @ 4Ω Bridged
Total RMS Power: 1,400W
Signal-to-Noise Ratio: 89 dB+ (CEA Standard)
Idle Current Draw: <0.5–1A
Power Terminal: 4 AWG
Speaker Terminal: 8 AWG
